Hi-Scan Check

  1. Turn the ignition switch off.
  2. Connect the Hi-Scan Pro connector to the data link connector located under the crash pad.

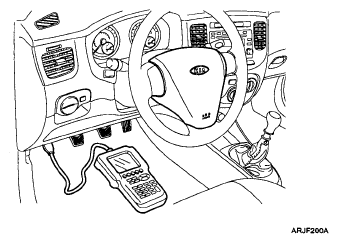

    Fig 1: Connecting HI-Scan PRO Connector To Data Link Connector
    G04863058Courtesy of KIA MOTORS AMERICA, INC.
  3. Turn the ignition switch on and power on the Hi-Scan Pro.
  4. Read DTCs.
  5. Find and repair the trouble, and clear the DTCs using Hi-Scan Pro.
  6. Disconnect the Hi-Scan Pro.
