Clutch System: Components

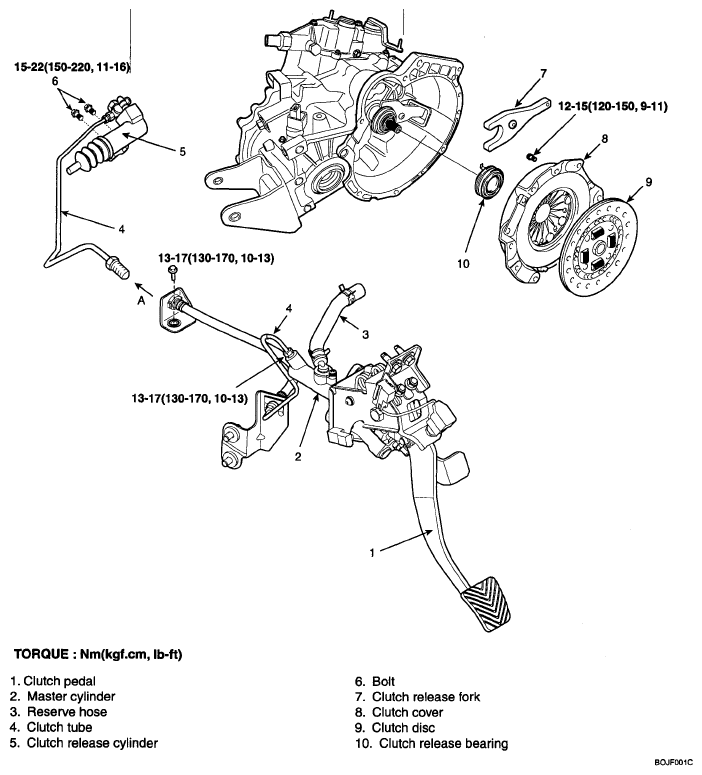

Fig 1: Clutch System Replacement Components With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
