FixVault
Home
›
Kia
›
2007
›
Rio Base, Standard
›
Repair and Diagnosis
›
Transmission
›
Manual Trans
›
Overhaul - M/T
›
Manual Transaxle System
›
Output Shaft
›
Components
Output Shaft: Components

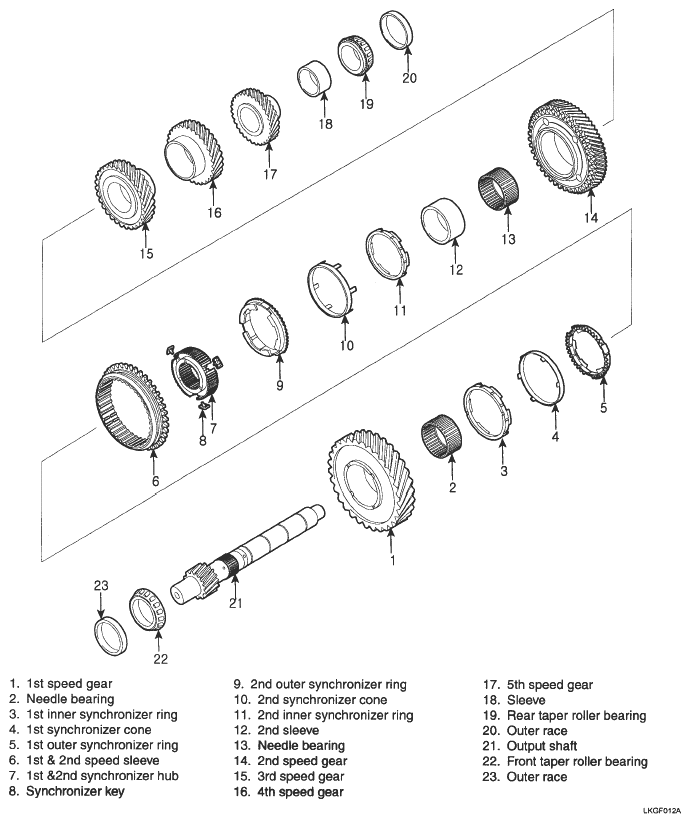

Fig 1: Exploded View Of Output Shaft Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
