Manual Transaxle System
›
Speedometer Driven Gear Assembly
›
Components
Speedometer Driven Gear Assembly: Components

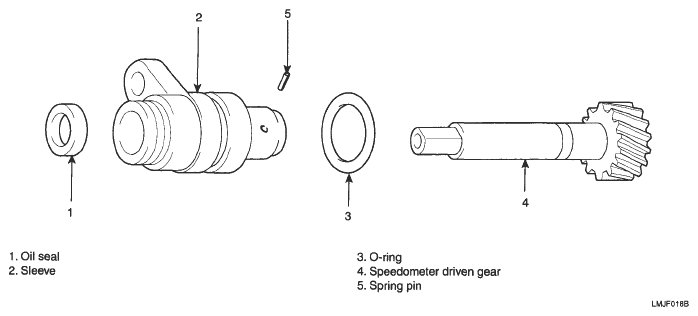

Fig 1: Identifying Speedometer Driven Gear Assembly Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
