Charging Systems: Generator: Component

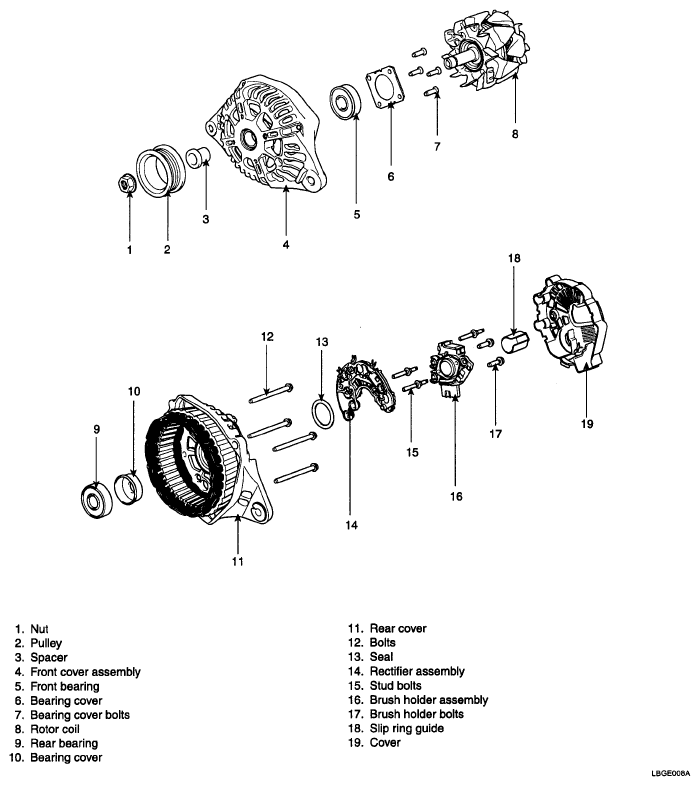

Fig 1: Identifying Generator Components
G04861938Courtesy of KIA MOTORS AMERICA, INC.
