General
›
Schematic Diagram
Schematic Diagram

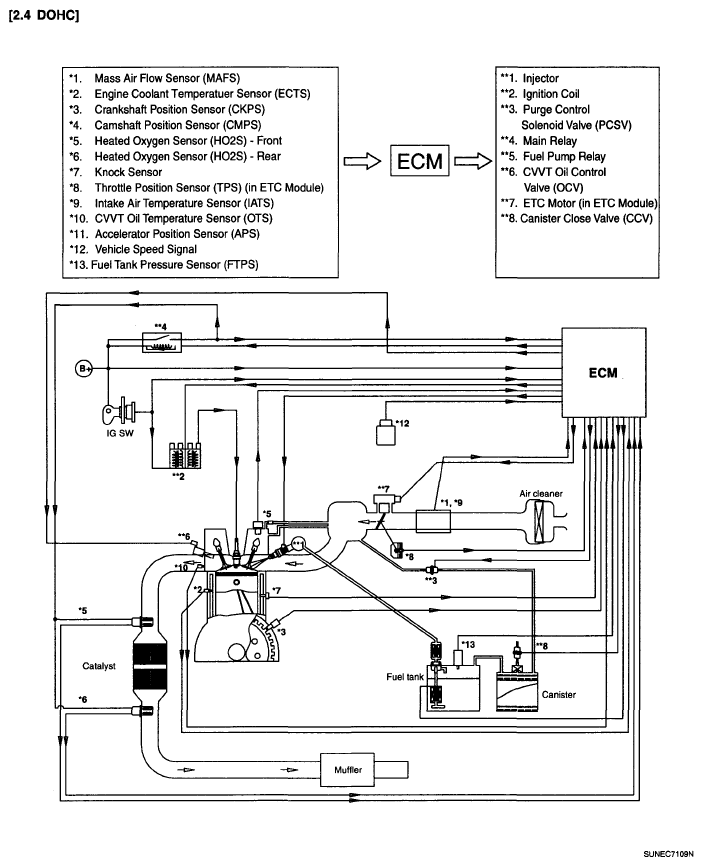

Fig 1: Emissions Control Component (2.4 DOHC) Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.

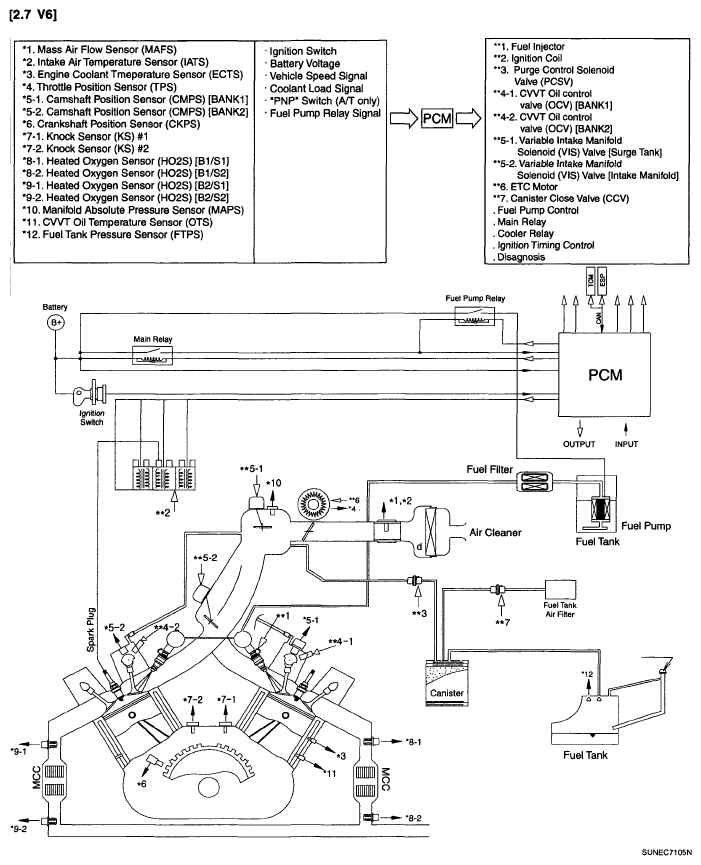

Fig 2: Emissions Control Component (2.7 V6) Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
