Gasoline Engine Control System (G4KC - GSL 2.4L)
›
Engine Control System Components
›
Purge Control Solenoid Valve (PCSV)
›
Inspection
›
Circuit Diagram
Circuit Diagram

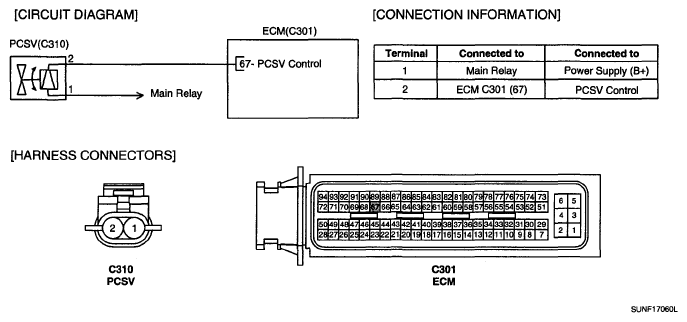

Fig 1: Purge Control Solenoid Valve - Circuit Diagram
