Home › Kia › 2007 › Rondo Base › Repair and Diagnosis › Brakes › Traction Control › Abs (Anti-Lock Brake System) › Components

Abs (Anti-Lock Brake System): Components

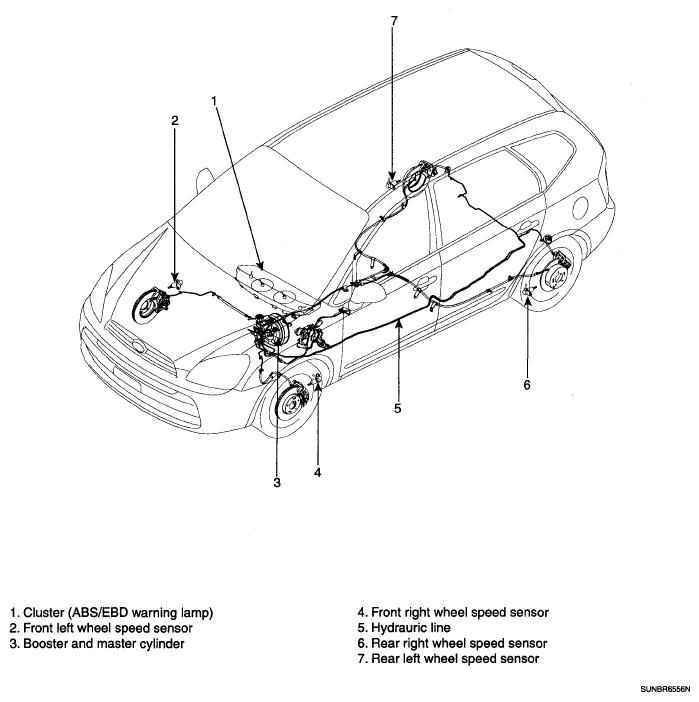

Fig 1: Identifying ABS Anti-Lock Brake System Components
G05187484Courtesy of KIA MOTORS AMERICA, INC.
