Home › Kia › 2007 › Rondo Base › Repair and Diagnosis › Brakes › Traction Control › ESC (Electronic Stability Control) › Description Of ESC › Components

Description Of ESC: Components

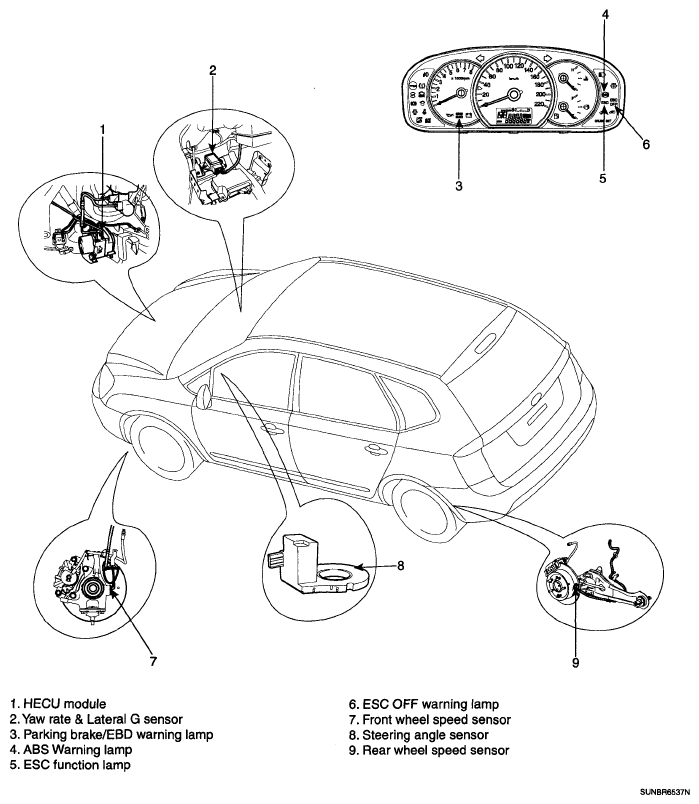

Fig 1: Identifying ABS/ESC System Components
G05187630Courtesy of KIA MOTORS AMERICA, INC.
