Driveshaft And Axle
›
Front Axle
›
Front Hub / Knuckle
›
Components
Front Hub / Knuckle: Components

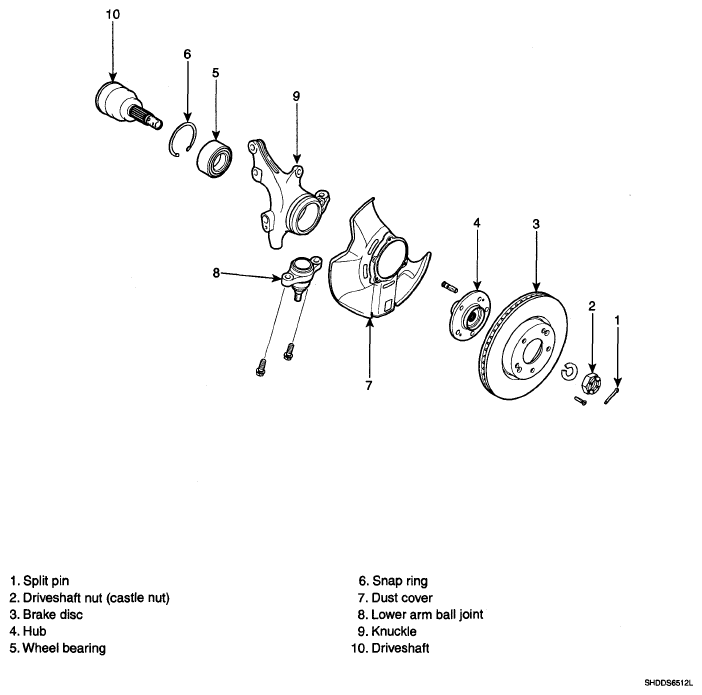

Fig 1: Exploded View Of Front Hub / Knuckle Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
