Audio System: Speakers: Inspection

  1. Check the speaker with an ohmmeter. If an ohmmeter indicates the correct impedance of the speaker when checking between the speaker (+) and speaker (-) of the same channel, the speaker is OK.

    Specified impedance : 2~4 Ω

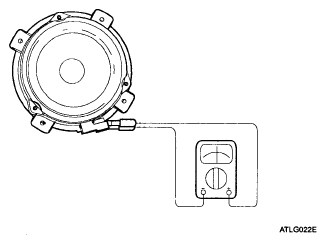

    Fig 1: Checking Speaker With An Ohmmeter
    G04806306Courtesy of KIA MOTORS AMERICA, INC.
