Chart 4

  1. RADIO

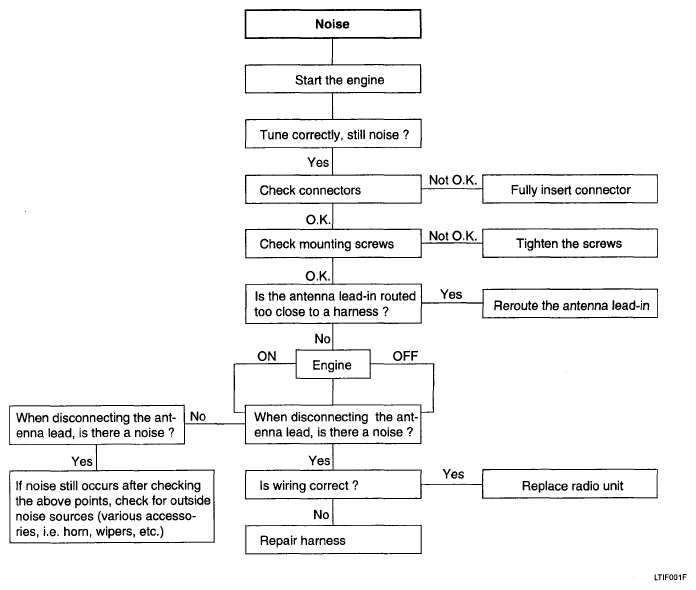

    Fig 1: Problem Occur Areas Flow Chart 4 (Radio)
    G04806283Courtesy of KIA MOTORS AMERICA, INC.
  2. TAPE

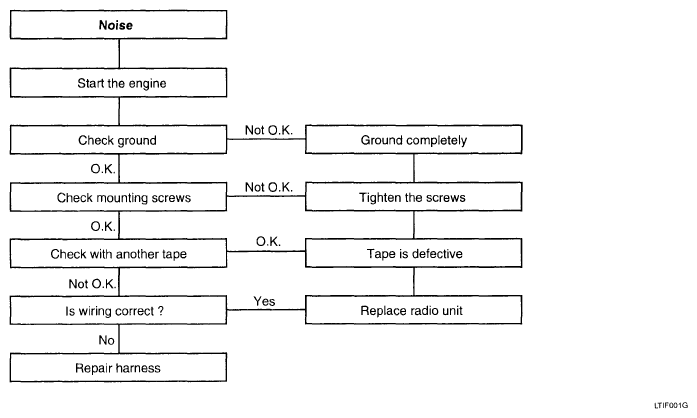

    Fig 2: Problem Occur Areas Flow Chart 4 (Tape)
    G04884524Courtesy of KIA MOTORS AMERICA, INC.
