Audio System
›
Troubleshooting
›
Chart 7
Chart 7

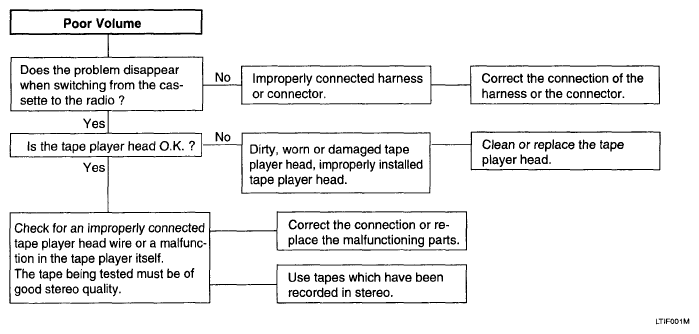

Fig 1: Problem Occur Areas Flow Chart 7
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
