Chart 8
Chart 8

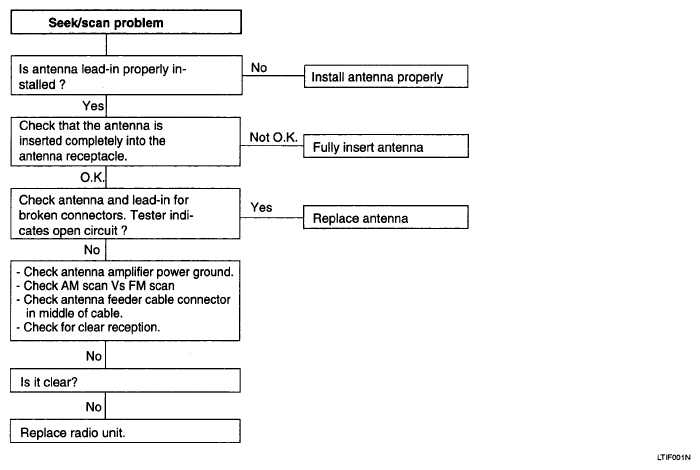

Fig 1: Problem Occur Areas Flow Chart 8
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
