Front Wiper Motor: Inspection: Overview

Install the wiper arm and blade to the specified position.

WIPER ARM AND BLADE POSITION

Specified position	A	B
Distance [in (mm)]	1.26 ± 0.2 (32 ± 5)	1.26 ± 0.2 (32 ± 5)

Fig 1: Identifying Wiper Arm And Blade Distance

Courtesy of KIA MOTORS AMERICA, INC.

Set the washer nozzle on the specified spray position.

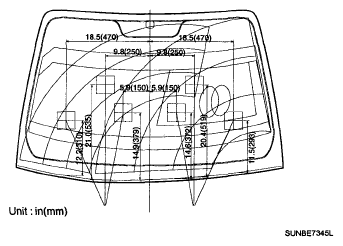

Fig 2: Identifying Washer Nozzle Spray Point
Courtesy of KIA MOTORS AMERICA, INC.
