Windshield Wiper/Washer: Troubleshooting

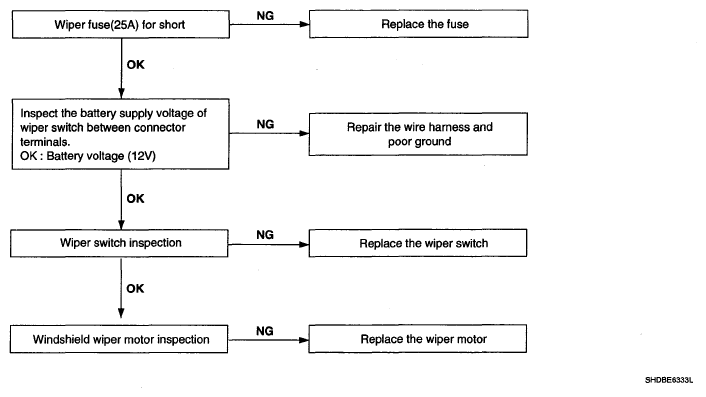

  1. Wiper low and wiper high do not work.
    Fig 1: Wiper Low And Wiper High Do Not Work - Troubleshooting Flow Chart
    G05187949Courtesy of KIA MOTORS AMERICA, INC.

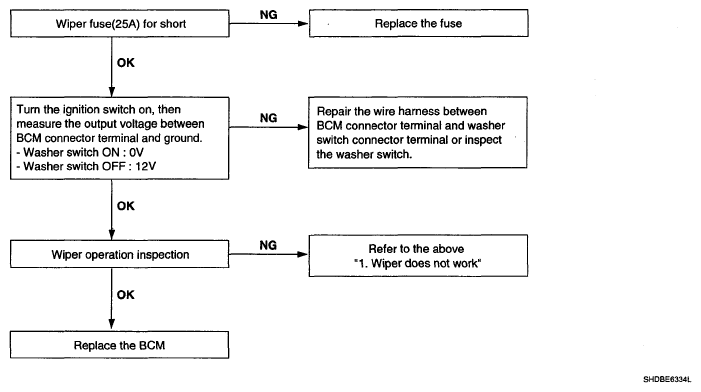

  2. When washer switch is on, wiper does not work.
    Fig 2: When Washer Switch Is On, Wiper Does Not Work - Troubleshooting Flow Chart
    G05187950Courtesy of KIA MOTORS AMERICA, INC.
