Windshield Wiper/Washer Switch: Removal

Disconnect the negative (-) battery terminal.
Remove the steering column upper and lower shrouds (A) after loosening 3 screws.

Fig 1: Identifying Steering Column Upper And Lower Shrouds Screws
Courtesy of KIA MOTORS AMERICA, INC.

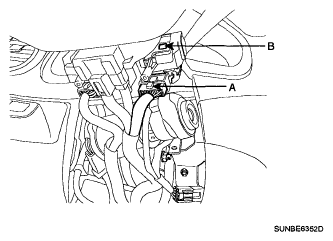

Remove the wiper switch (A) after disconnecting the connector with pushing the lock pin (B) and loosening 2 screws.

Fig 2: Identifying Wiper Switch And Connector With Pushing Lock Pin
Courtesy of KIA MOTORS AMERICA, INC.
