Repair and Diagnosis
›
Engine Mechanical
›
Auxiliary Emission Control Systems
›
Emissions Control System
›
General
›
Component Location
Component Location

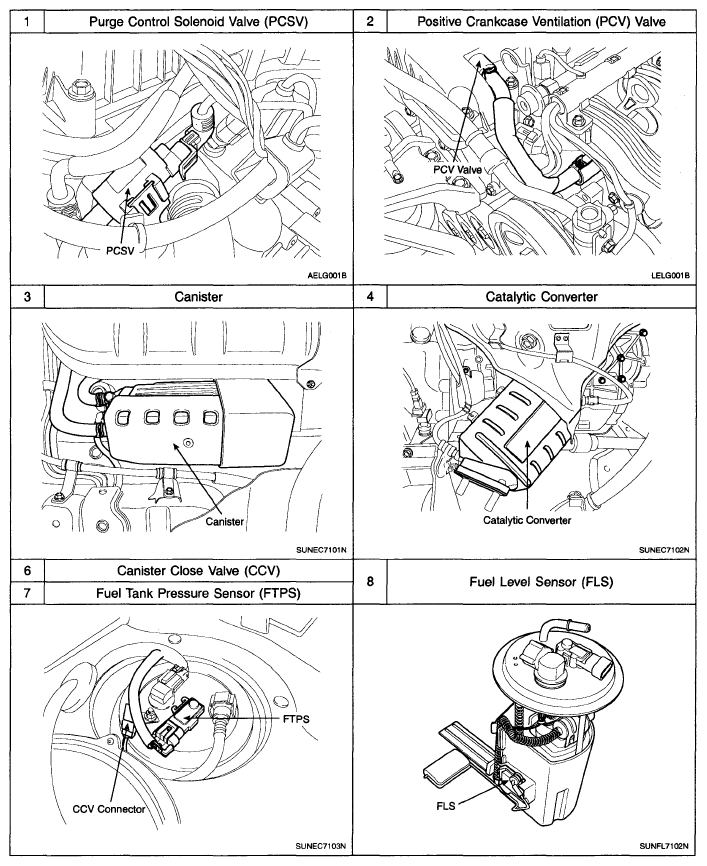

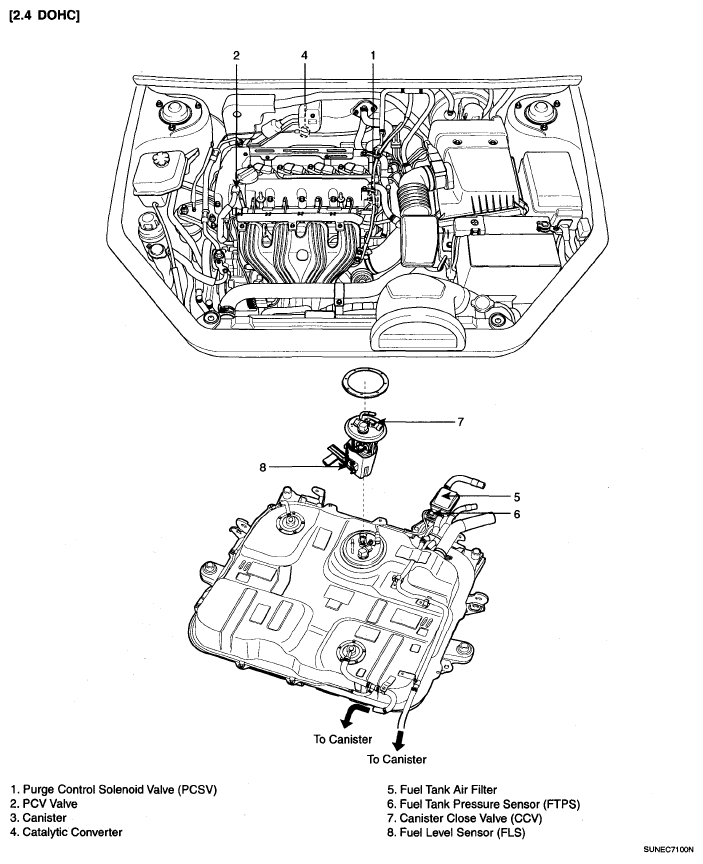

Fig 1: Identifying Emissions Control Component Locations - 2.4 DOHC (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

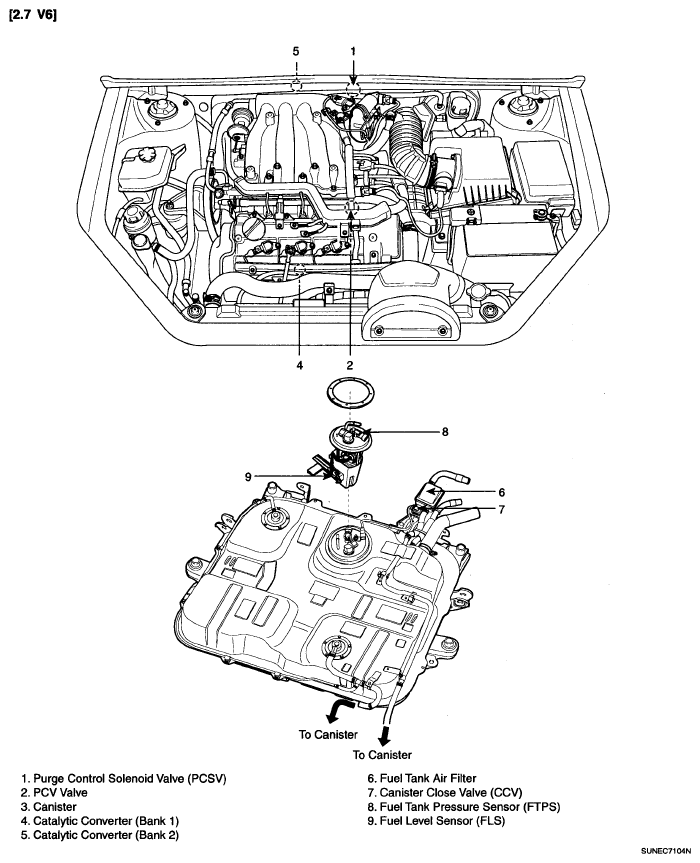

Fig 2: Identifying Emissions Control Component Locations - 2.4 DOHC (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

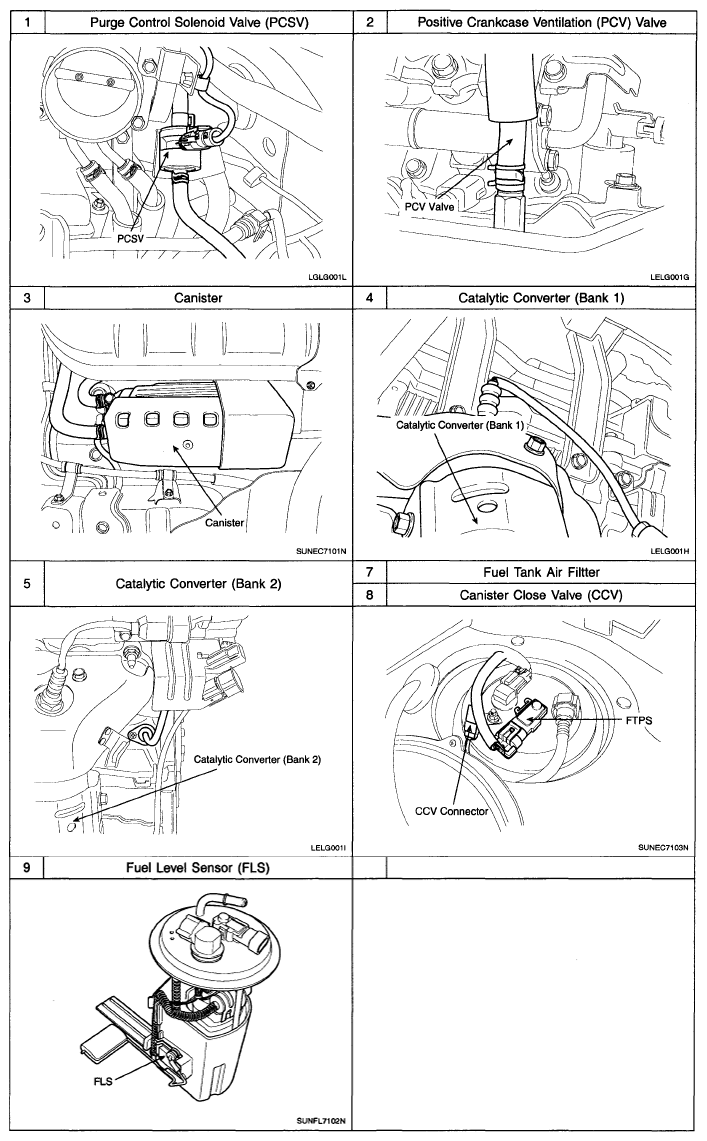

Fig 3: Identifying Emissions Control Component Locations - 2.7 V6 (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 4: Identifying Emissions Control Component Locations - 2.7 V6 (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
