Gasoline Engine Control System (G4KC - GSL 2.4L)
›
Engine Control System Components
›
Camshaft Position Sensor (CMPS)
›
Inspection
›
Circuit Diagram
Circuit Diagram

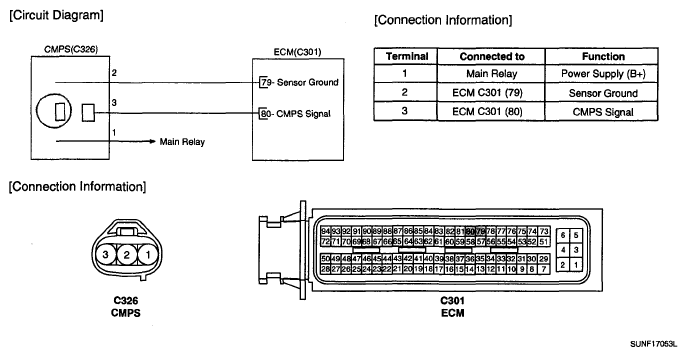

Fig 1: CMP Sensor And ECM Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
