Gasoline Engine Control System (G4KC - GSL 2.4L)
›
Engine Control System Components
›
Engine Coolant Temperature Sensor (ECTS)
›
Inspection
›
Circuit Diagram
Circuit Diagram

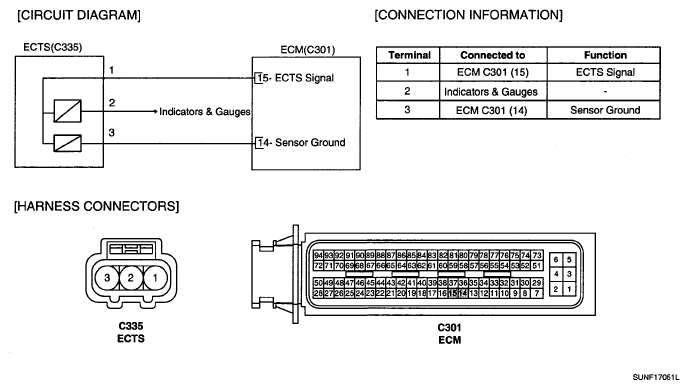

Fig 1: ECM And ECT Sensor Circuit Diagram
