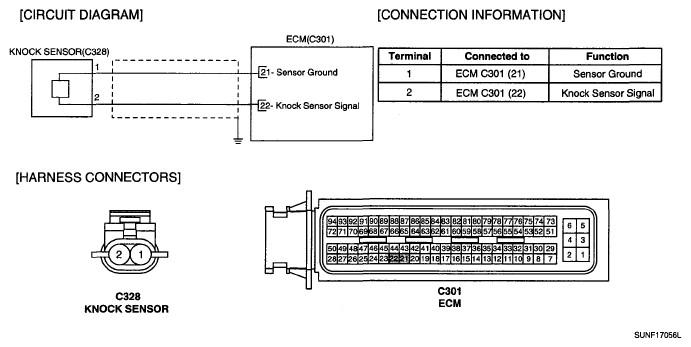

Home › Kia › 2007 › Rondo Base › Repair and Diagnosis › Engine Performance › Engine Control Systems › Gasoline Engine Control System (G4KC - GSL 2.4L) › Engine Control System Components › Knock Sensor (KS) › Inspection › Circuit Diagram
