Gasoline Engine Control System (G4KC - GSL 2.4L)
›
OBD-II Review
›
Component Location
Component Location

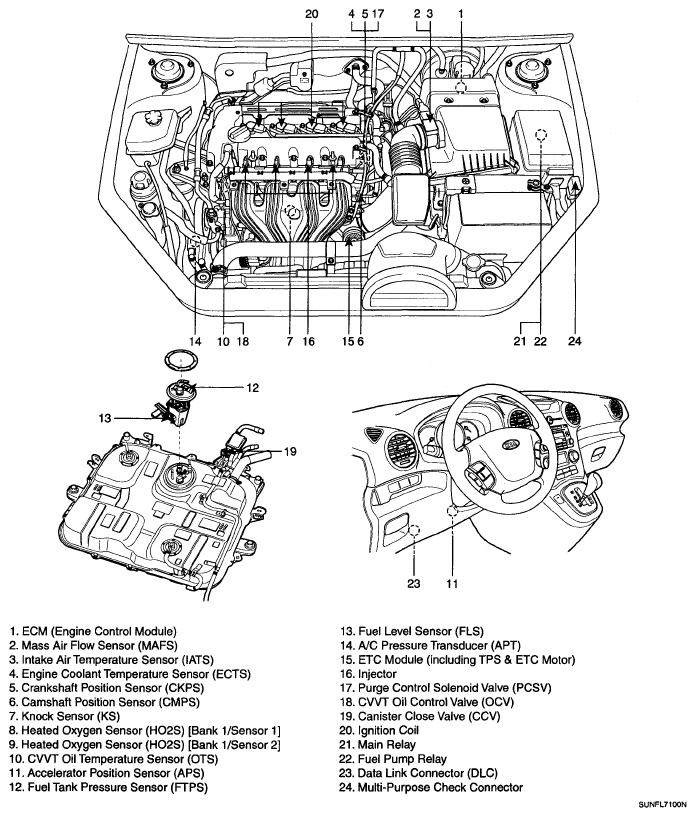

Fig 1: Engine Control System Component Locations (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

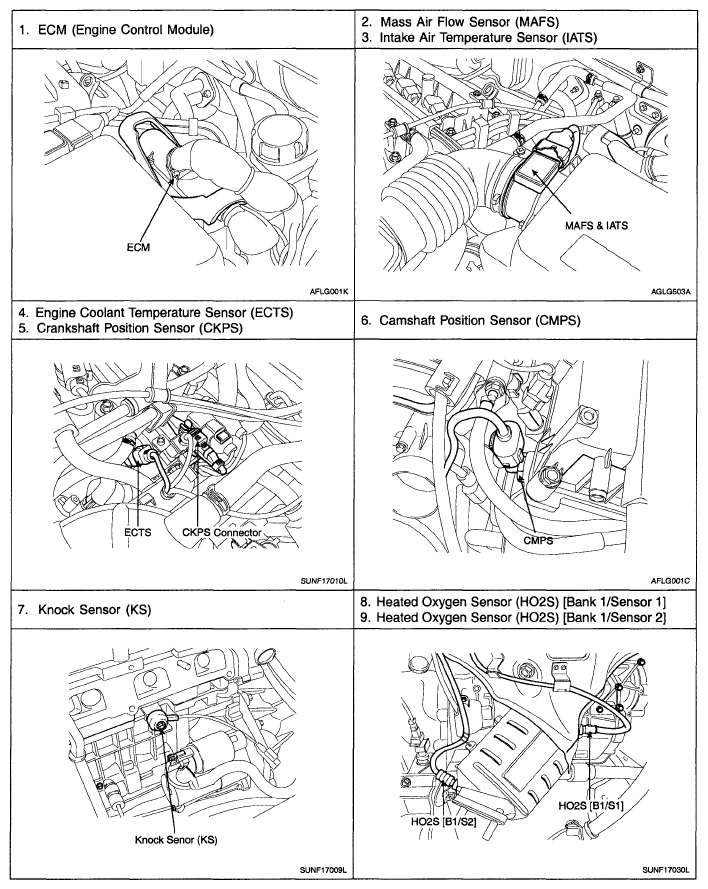

Fig 2: Engine Control System Component Locations (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

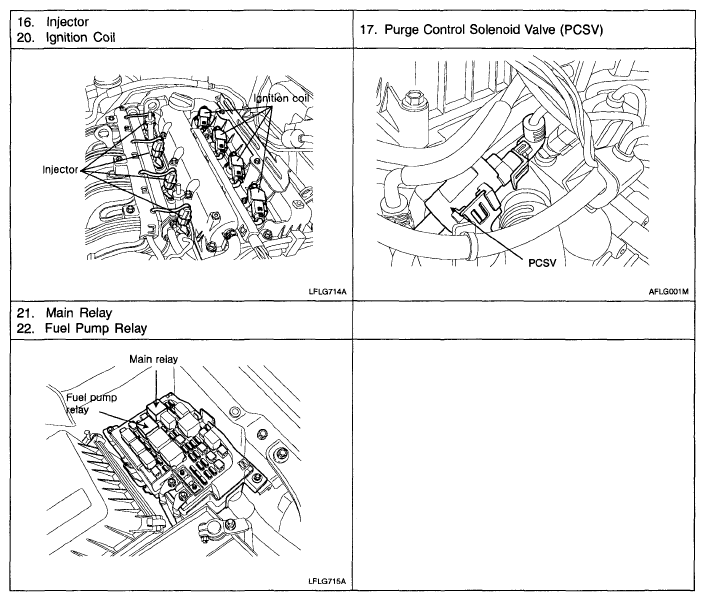

Fig 3: Engine Control System Component Locations (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

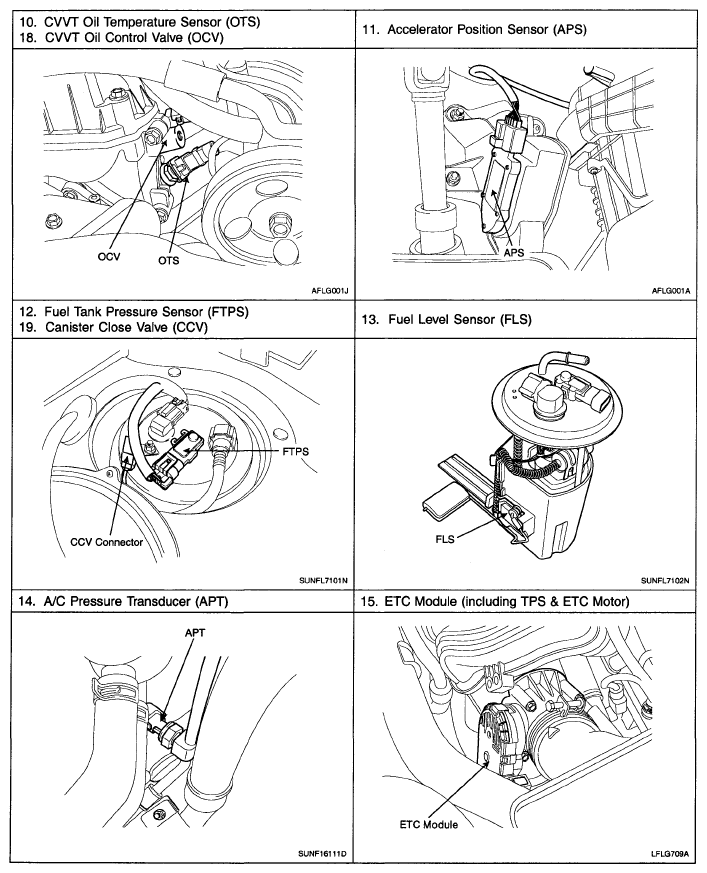

Fig 4: Engine Control System Component Locations (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
