WCS Reset
WARNING: This page is about a different variant/trim than selected.
- Ignition "OFF", connect scan tool.

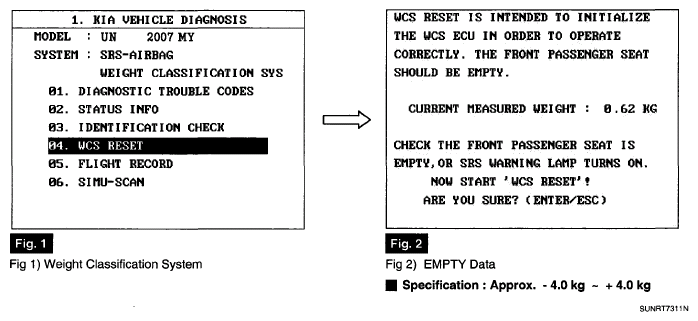

- Ignition "ON" & Engine "OFF", select Weight Classification System and select "WCS Reset" mode.
- You will see comments and current weight measured.
- Make sure the measure weight is caused by occupant or tools or interference.
- And then press "ENTER"
- The 'WCS Reset' operation will take 3-10 second.
- Make sure that there should not be vibration or weight adding to the passenger front seat.

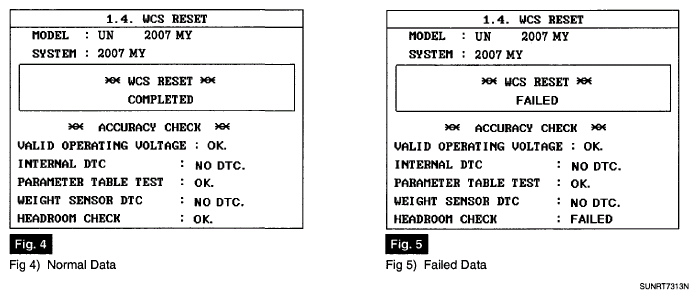

- If the 'WCS Reset' operation is finished successfully, you will see the following screen.
- Is the displayed parameter the same as the above 4 figure?
YES
- WCS reset is performed correctly.
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- WCS reset isn't performed correctly.
- Go to the applicable troubleshooting procedure.
