Components (1)

WARNING: This page is about a different variant/trim than selected.

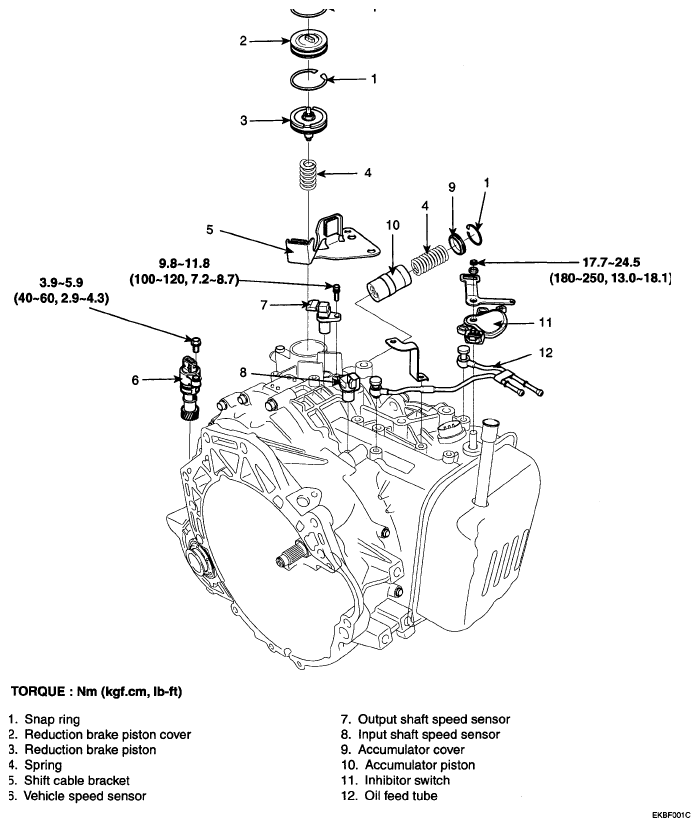

Fig 1: Exploded View Of Automatic Transaxle Components (1 Of 3)
G05186669Courtesy of KIA MOTORS AMERICA, INC.
