Section 9 (Automatic Transaxle System (A5GF1))
›
Automatic Transaxle System
›
Automatic Transaxle
›
Components (2)
Components (2)
WARNING:
This page is about a different variant/trim than selected.

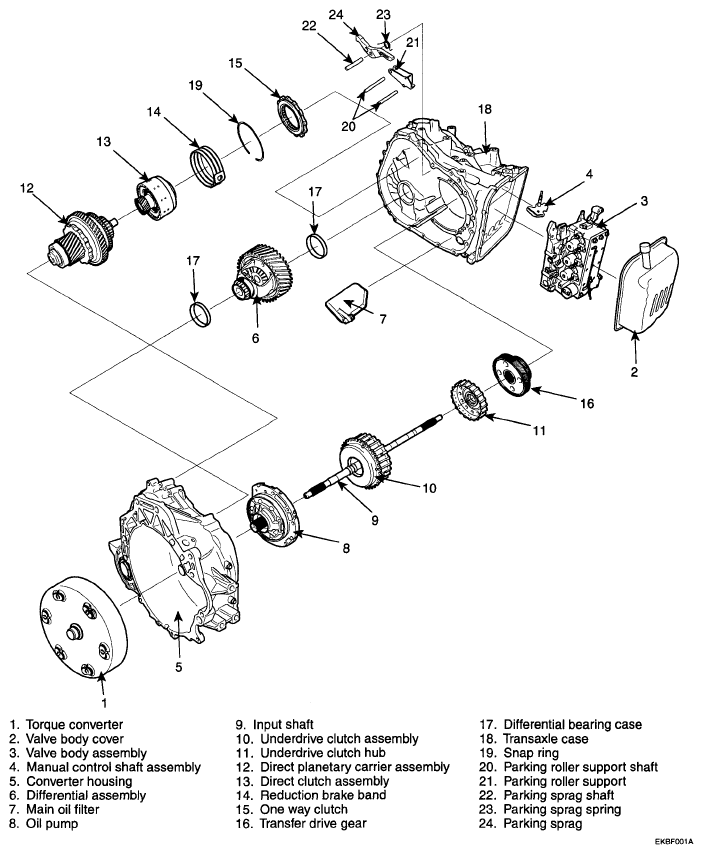

Fig 1: Exploded View Of Automatic Transaxle Components (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
