Home › Kia › 2007 › Rondo Base › Repair and Diagnosis › Steering › Power Steering › Steering System › Mechanical Power Steering System › Power Steering Gear Box › Components

Power Steering Gear Box: Components

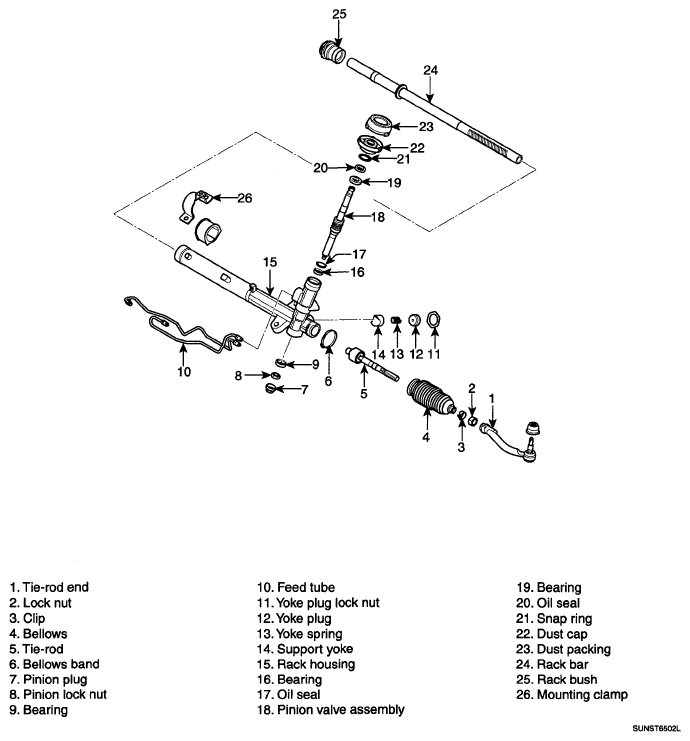

Fig 1: Exploded View Of Power Steering Gear Box Components
G05187075Courtesy of KIA MOTORS AMERICA, INC.
