Front Strut Assembly: Components

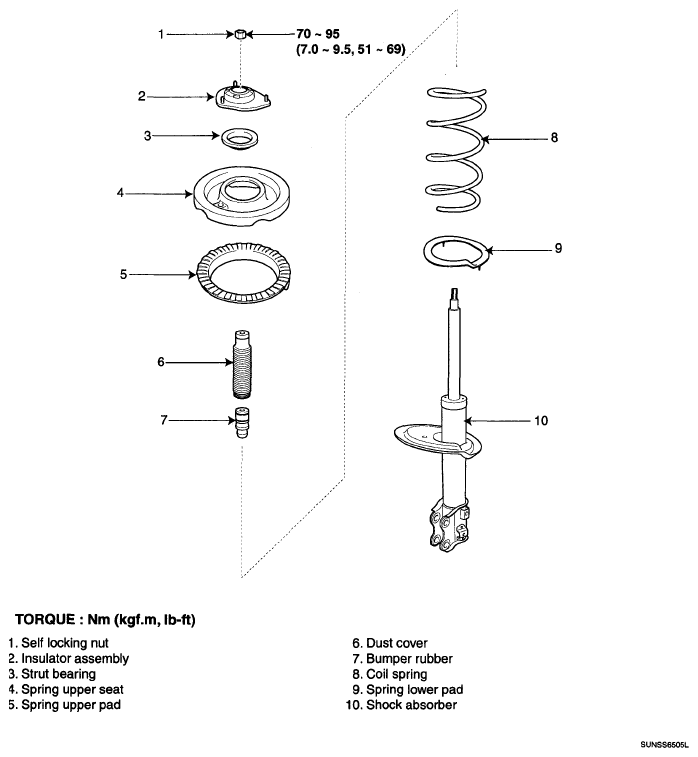

Fig 1: Front Strut Assembly Replacement Components With Torque Specifications
G05186874Courtesy of KIA MOTORS AMERICA, INC.
