Rear Suspension System: Components

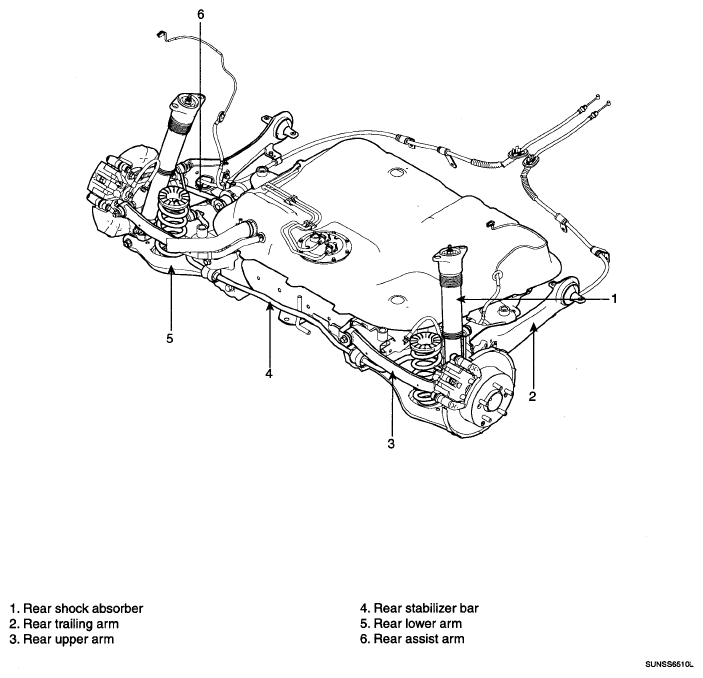

Fig 1: Identifying Rear Suspension System Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
