Monitor SCANTOOL Data

  1. Connect scantool to data link connector (DLC).
  2. Engine "ON".
  3. Monitor the "LR SOL. VALVE" parameter on the scan tool.
  4. Shift gear position 1st to 2nd.

    Specification: 1st → 100%, 2nd → 0.0%

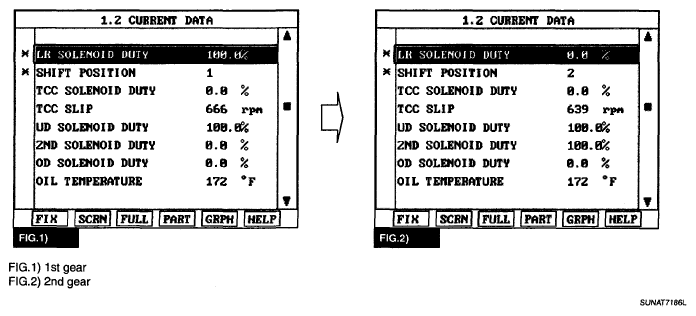

    Fig 1: Scantool Display - Solenoid Duty
    G05186405Courtesy of KIA MOTORS AMERICA, INC.
  5. Does "LR SOLENOID DUTY" follow the reference data?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
