Power Train: N-P

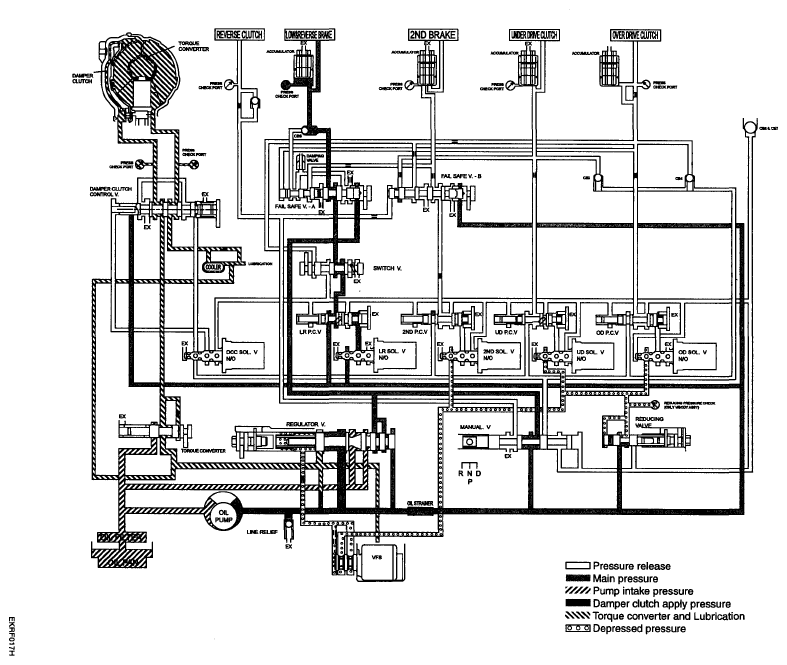

Fig 1: Hydraulic Pressure Diagram - N-P
G05186302Courtesy of KIA MOTORS AMERICA, INC.
