Diagnosis Flow

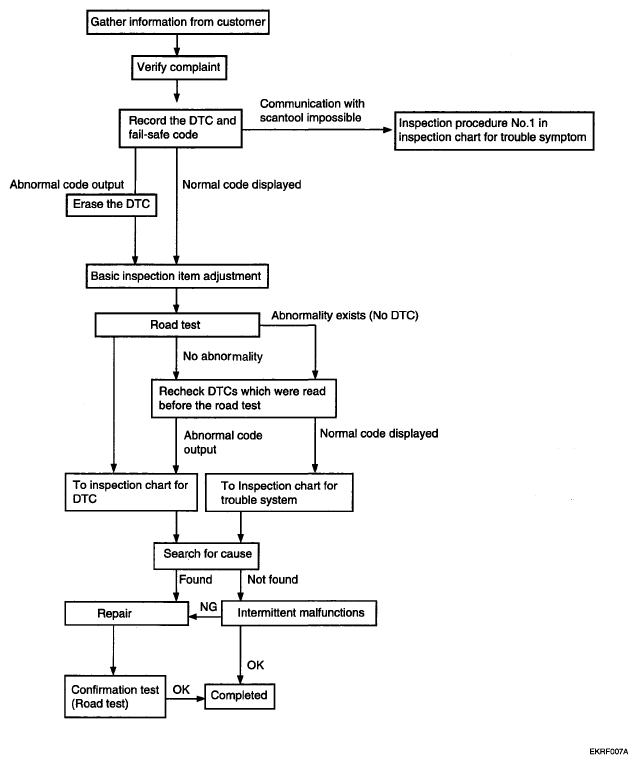

Fig 1: Automatic Transaxle - Diagnosis Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
