Automatic Transaxle System (F4A42)
›
Automatic Transaxle
›
Components (3)
Components (3)

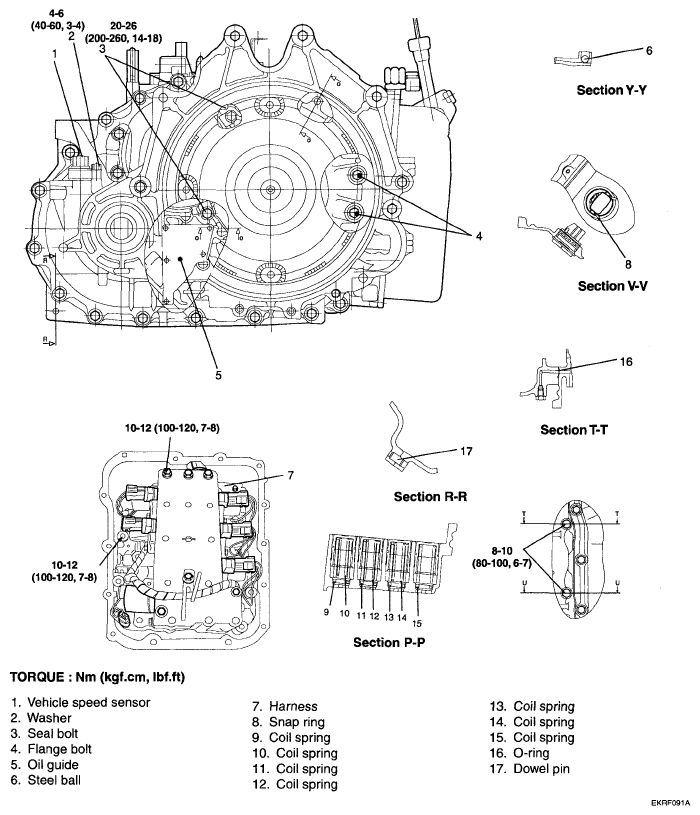

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
