Anti-Lock Braking System Control Module: Components

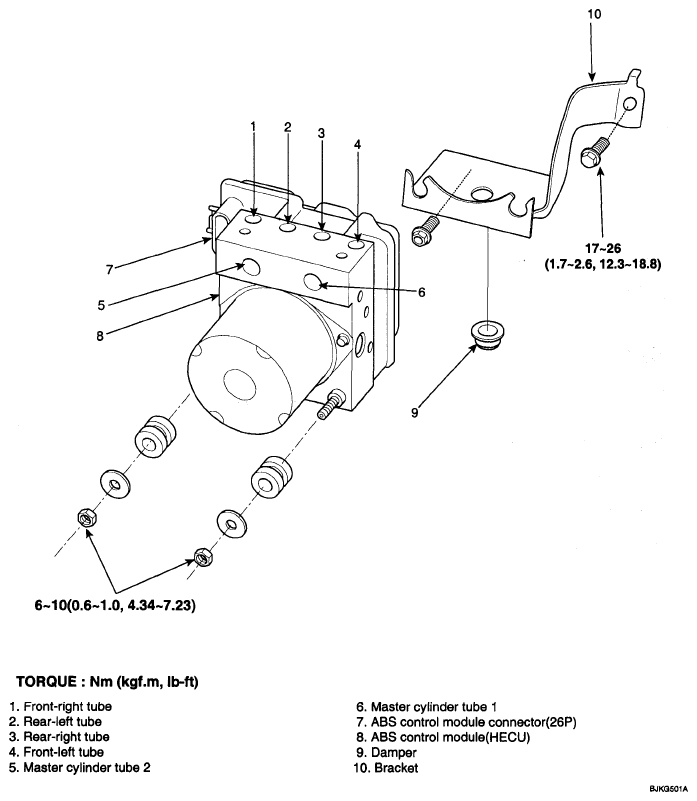

Fig 1: Anti-Lock Braking System Control Module Component Location With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
