Engine Block: Components

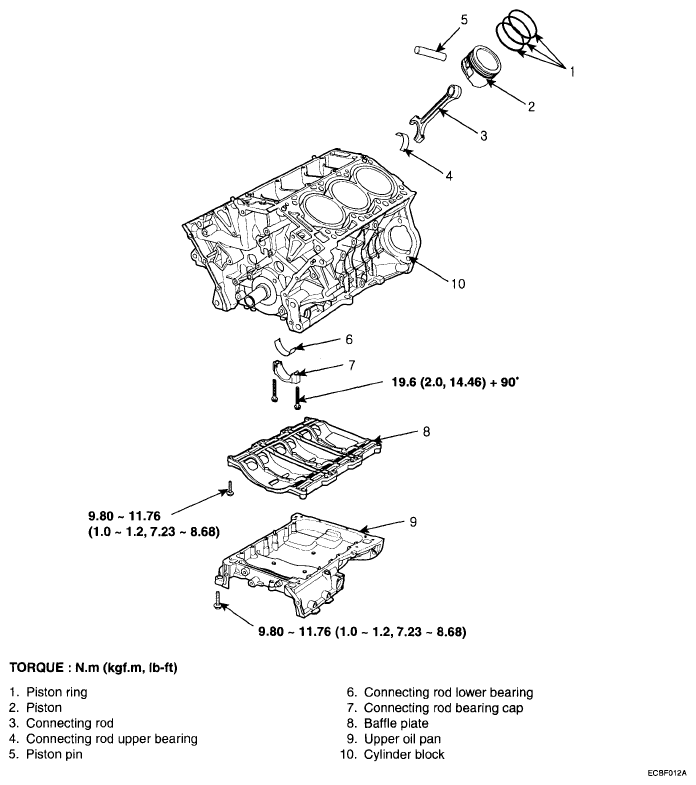

Fig 1: Engine Block Replacement Components With Torque Specifications (1 Of 2)
G04883056Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Engine Block Replacement Components With Torque Specifications (2 Of 2)
G04883057Courtesy of KIA MOTORS AMERICA, INC.
