Circuit Diagram
Circuit Diagram

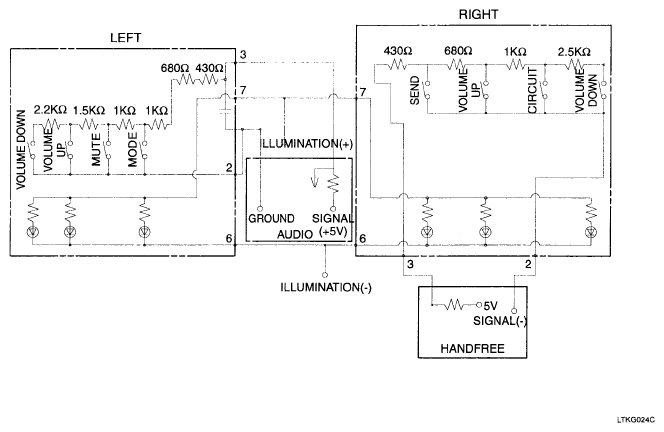

Fig 1: Steering Wheel Remote Control Switch - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
