PTG Drive Unit: Replacement

Disconnect the negative (-) battery terminal.
Remove the third, fourth seat (Refer to SEAT )
Remove the D pillar and luggage side trim (Refer to INTERIOR TRIM ).
Use a small screw driver to loosen clip (A). But do not remove power tailgate push rod (B).

Fig 1: Identifying Clip And Tailgate Lifter
Courtesy of KIA MOTORS AMERICA, INC.
Remove the power tail gate motor mounting bolts (3EA) and connectors (4EA). And then remove the power tail gate drive unit (A).
TORQUE: 0.22 - 0.27 N.m (0.022 - 0.027 kg.m)

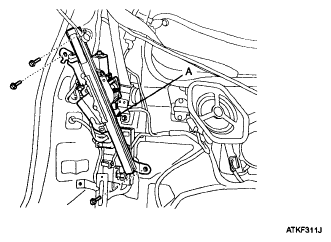

Fig 2: Identifying Power Tail Gate Drive Unit
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: PTG drive unit bracket connector (B) does not need to be disconnected in this procedure.

Fig 3: Identifying PTG Drive Unit Bracket Connector
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Connect the connectors tightly.
- Check the power tail gate for normal operation correctly.
WARNING:
- A lost drive unit mounting bolt in the vehicle may make a noise.
- Don't operate the power tail gate when a push rod is removed.
- A learn cycle must be performed whenever the power is removed.
- Check the normal operating whenever a power tailgate component is removed or replaced. If the chime sound is heard, check the DTC, wiring harness and cable connections.
