ESC (Electronic Stability Control): Components

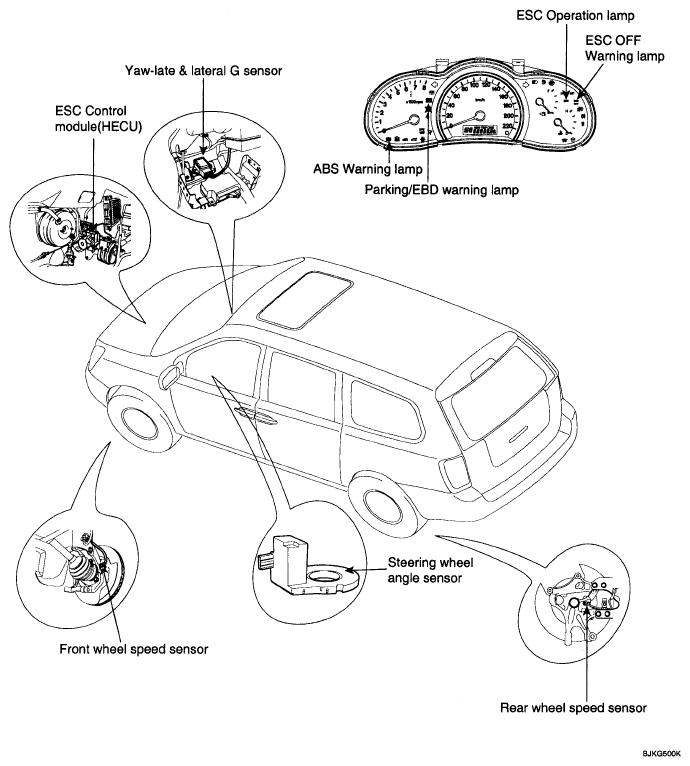

Fig 1: Identifying Electronic Stability Control Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
