OEM Connector End Views
›
Connector End Views
›
Multi Function Switch Connector End Views & Locations
Multi Function Switch Connector End Views & Locations

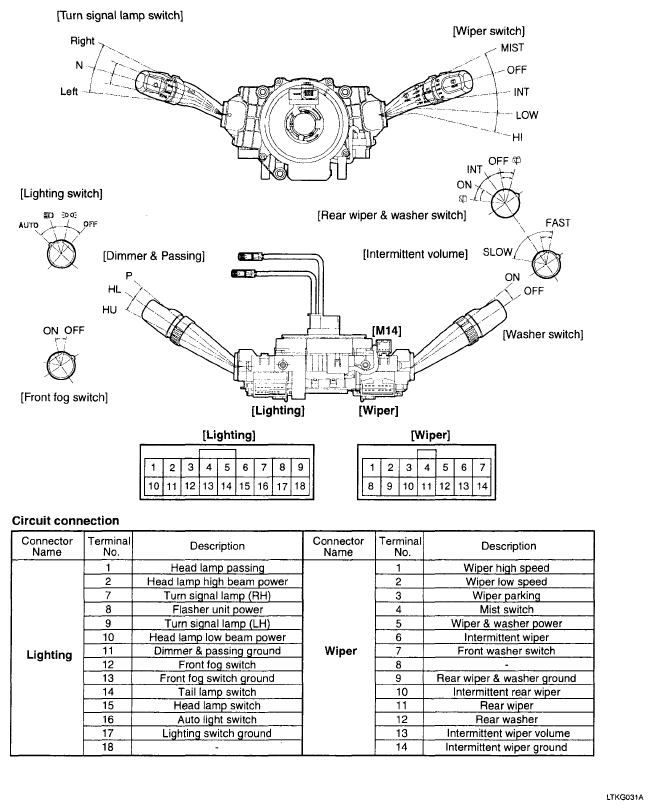

Fig 1: Multi Function Switch Connector End Views & Locations
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
