Repair and Diagnosis
›
Engine Mechanical
›
Auxiliary Emission Control Systems
›
Emissions Control System - General
›
Schematic Diagram
Schematic Diagram

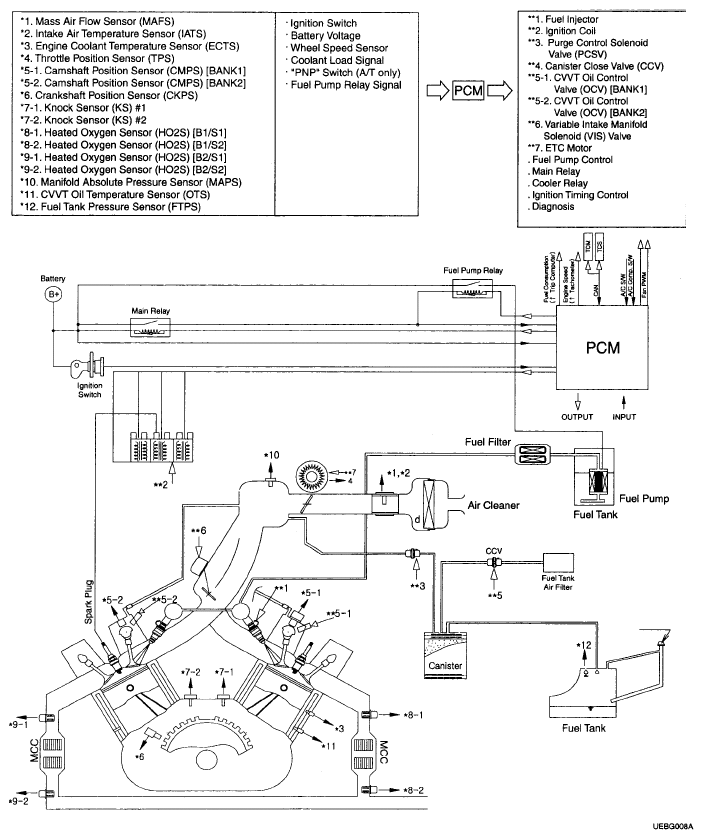

Fig 1: Emission Control System Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
