Sedona Base
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Injector
›
Description
›
Schematic Diagram
Schematic Diagram

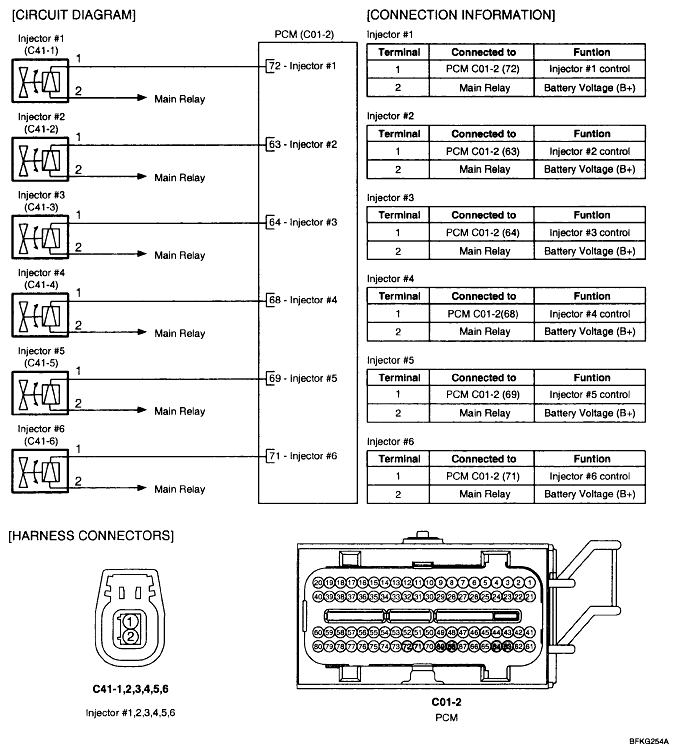

Fig 1: Injector Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
