Abs Relay Block Kit Installation (SC186) (SC186)

Publication date: 2020-06-09
Reference number: SC186

ABS RELAY BLOCK KIT INSTALLATION (SC186)

SERVICE CAMPAIGN BULLETIN

Reference Number(s): SC186, Date of Issue: June 09, 2020

KIA:	2006-2010 Sedona (VQ) 2007-2009MY Sorento (BL)
GROUP:	Safety Recall Campaign

SERVICE INFORMATION

This bulletin provides the procedure to install an Anti-Lock Brake System (ABS) relay block on the Process Control Box (PCB) - Fuse/Junction Box of certain 2006-2010MY Sedona (VQ) vehicles and certain 2007-2009MY Sorento (BL) vehicles (refer to page 8/8 for production dates). When the vehicle is in the key OFF position and parked, the Hydraulic Electronic Control Unit (HECU) remains energized. If moisture enters the HECU, an electrical short circuit could occur even though the vehicle is turned off and parked. An electrical short circuit inside the HECU may increase the risk of an engine compartment key OFF fire. Before conducting the procedure, verify that the vehicle is included in the list of affected VINs.

Installation Procedure: Sedona (VQ) page 2 - Sorento (BL) page 4.

NOTE: There is no charge to the vehicle owner for this repair. Under applicable law, you may not sell or otherwise deliver any affected vehicle until it has been repaired pursuant to the procedures set forth in this bulletin.

NOTE: To assure complete customer satisfaction, always remember to refer to WebDCS Warranty Coverage (validation) Inquiry Screen (Service → Warranty Coverage → Warranty Coverage Inquiry) for a list of any additional campaigns that may need to be performed on the vehicle before returning it to the customer.

INSTALLATION PROCEDURE FOR SEDONA (VQ)

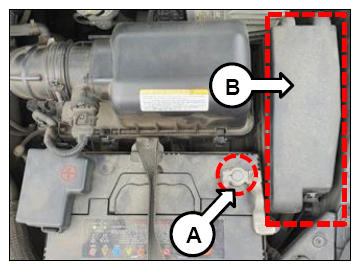

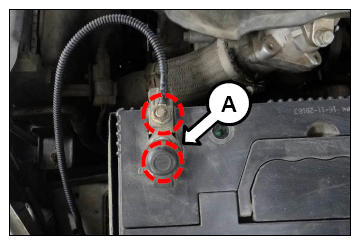

1. Open hood and disconnect the battery Negative (-) cable (A).

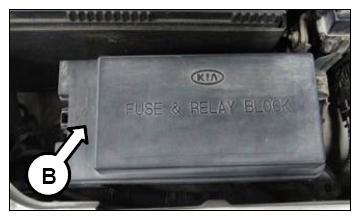

2. Remove the junction box cover (B).
Remove the following three (3) fuses from the junction box (C):
1. ECU 10A
2. ABS 20A
3. ABS 40A

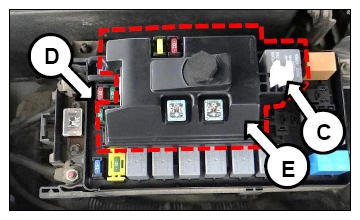

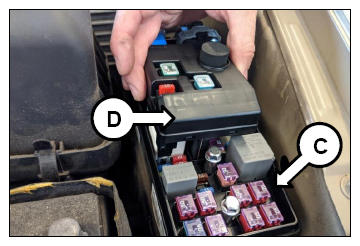

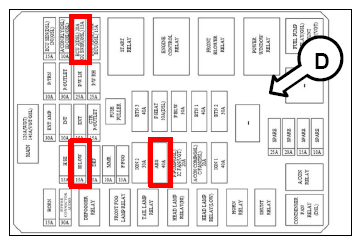

Install the relay block (D) to the junction box (C). Be sure to align the bottom connections to the removed fuses on the junction box.
Secure relay block by pressing down firmly.

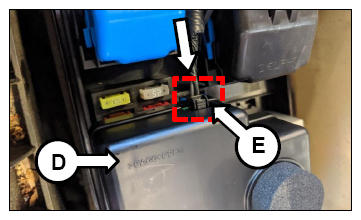

Connect the supplied cable (E) from the kit to the back of the relay block (D).

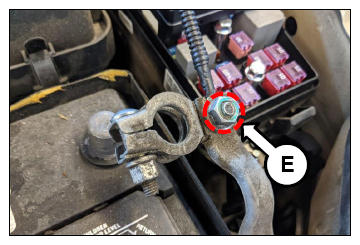

Connect the opposite end of the cable (E) to the battery negative terminal as shown.
Torque specification for bolt:

14.47 - 21.70 lb.ft (19.61 - 29.42 N.m, 2.00 - 3.00 kgf.m)

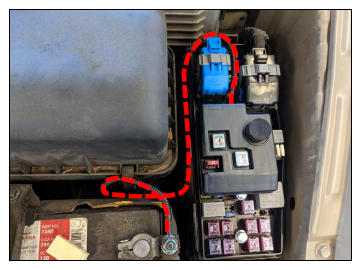

Re-connect the negative (-) battery terminal to the battery post and route the relay block cable (E) around the junction block.
Install the new junction box cover.
Turn ignition ON and confirm no warning lamps are displayed on the cluster.

INSTALLATION PROCEDURE FOR SORENTO (BL)

Open hood and disconnect the battery Negative (-) cable (A).

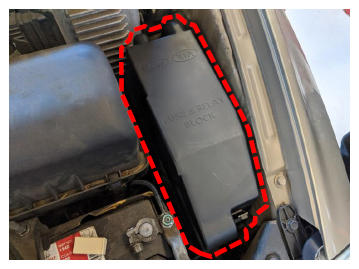

Remove the junction box cover (B).

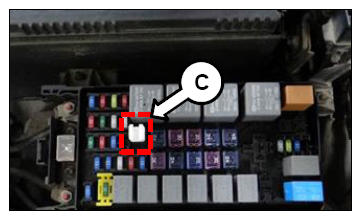

Remove the fuse holder (C).

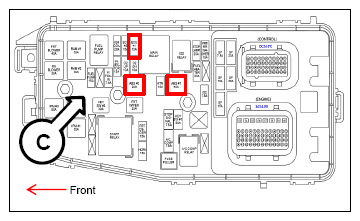

Remove the following three (3) fuses from the junction box (D):
1. ECU2 20A (or 15A O2 Sensor)
2. ABS 40A
3. HEADLAMP 15A
1. Install the relay block (E) from the kit into the junction box (D). Be sure to align the bottom connections to the removed fuses on the junction box.
2. Install the previously removed fuse holder (C) to the relay block.
  Secure relay block by pressing down firmly.

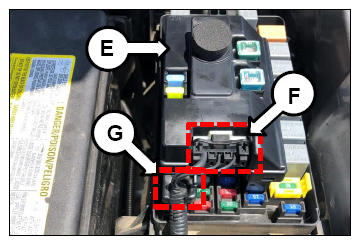

1. Insert the supplied cable (F) connector end from the kit to the relay block (E) until a click is heard.
  Secure harness wiring to the hook (G).

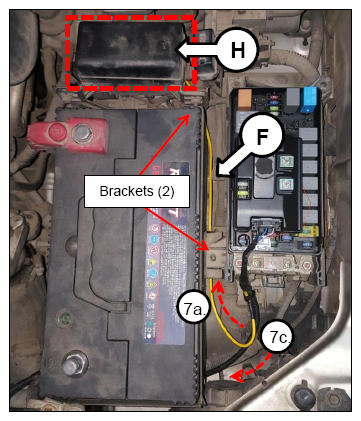

1. Run the other end of the cable (F), shown in yellow, to the gasoline box (H) as shown.
  IMPORTANT: Run the cable below the two (2) brackets as shown. The yellow cable shown may differ in color .
2. Remove the gasoline box (H) cover.

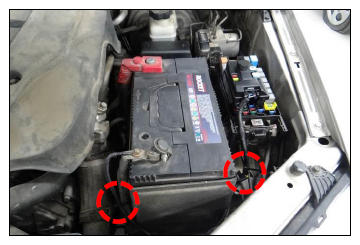

3. Route the black insulated wire towards the negative (-) post on the battery as shown.
Remove the ABS2 20A fuse in the gasoline box.

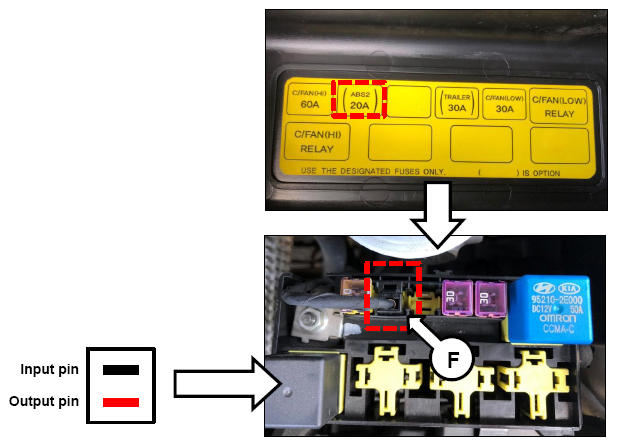

Insert the yellow cable (F) pin connector end into the bottom 20A output pin as shown below.
NOTE: Check the output pin position and locking direction when installing the connector.

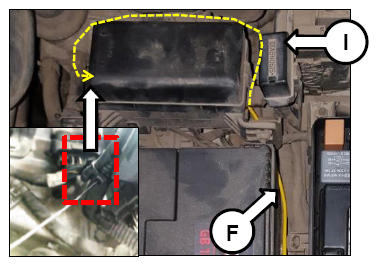

Reinstall the gasoline box cover (I) and secure the wire using a zip-tie from kit to the existing 12v input harness as shown.
NOTE: Ensure the yellow cable (F) is routed towards the back of the gasoline box (follow the yellow dotted line).

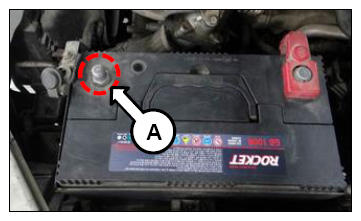

Re-connect the battery (-) terminal (A) and secure the black insulated cable end to battery post nut as shown.
Torque specification for bolt:

14.47 - 21.70 lb.ft (19.61 - 29.42 N.m, 2.00 - 3.00 kgf.m)
Secure the black insulated cable using the supplied zip-ties.

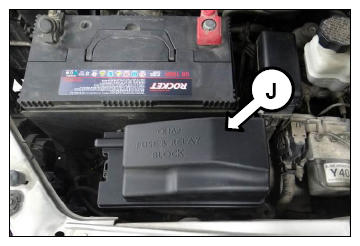

Install the new supplied junction box cover (J) from the kit.
IMPORTANT: Proper installation of the junction box cover is required, to properly secure the relay block.
Turn ignition ON and confirm no warning lamps are displayed on the cluster.

AFFECTED VEHICLE RANGE

Model	Production Date Range
Sedona (VQ)	June 15, 2005 to July 15, 2009
Sorento (BL)	June 15, 2006 to December 15, 2008

REQUIRED PART

Model	Part Name	Part Number	Figure	Qty.
Sorento (BL)	ABS/PCB Relay Block Kit	91940 3E001QQK		1
Sedona (VQ)	ABS/PCB Relay Block Kit	91940 4D001QQK		1

WARRANTY INFORMATION

N Code: N99 C Code: C99

Model	Claim Type	Causal P/N	Qty.	Repair Description	Labor Op Code	Op Time	Replacement P/N	Qty.
BL	R	91161 3E080	0	(SC186) ABS Relay Block Installation	201021R0	0.3 M/H	91940 3E001QQK	1
VQ	R	91950 4D020	0	(SC186) ABS Relay Block Installation	201021R1	0.3 M/H	91940 4D001QQK	1

NOTE: Use sublet code 'RX' for substitute transportation for one day max allowance. Refer to section 6.11.6 of the SPPM for maximum allowed expense for rental and ride share.

NOTE: VIN inquiry data for this repair is provided for tracking purposes only. Kia retailers should reference SC186 when accessing the WebDCS system.
