Home › Kia › 2007 › Sedona Base › Repair and Diagnosis › Suspension › Front Suspension › Front Suspension System › Components

Front Suspension System: Components

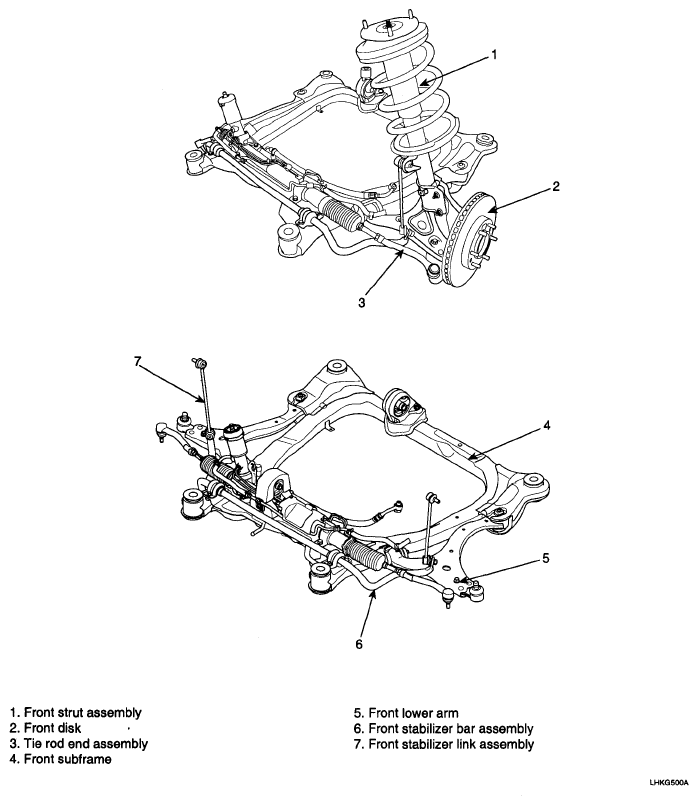

Fig 1: Identifying Front Suspension System Components
G04882470Courtesy of KIA MOTORS AMERICA, INC.
