Automatic Transaxle System
›
Mechanical System
›
Automatic Transaxle Hydraulic Circuit
›
R Range
R Range

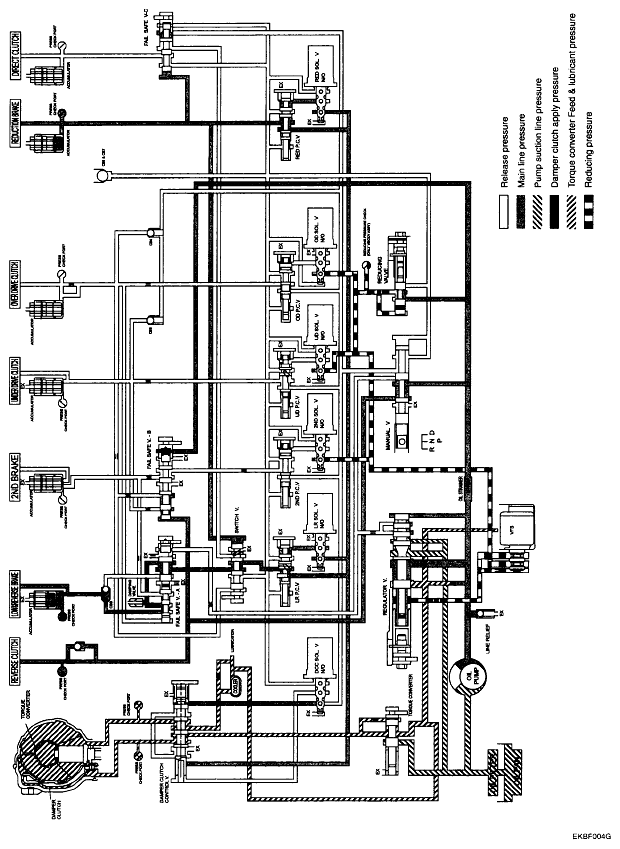

Fig 1: Automatic Transaxle Hydraulic Circuit Diagram - Range
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
