Sedona EX
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Abs (Anti-Lock Brake System)
›
Standard Flow Of Diagnostic Troubleshooting
›
Notes
Standard Flow Of Diagnostic Troubleshooting: Notes

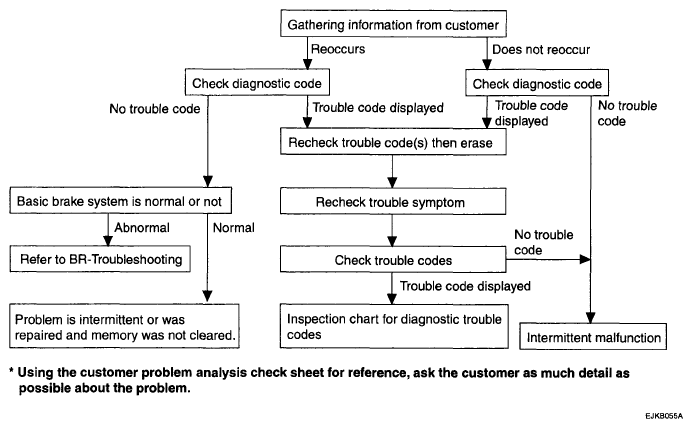

Fig 1: Standard Flow Of Diagnostic Troubleshooting Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
