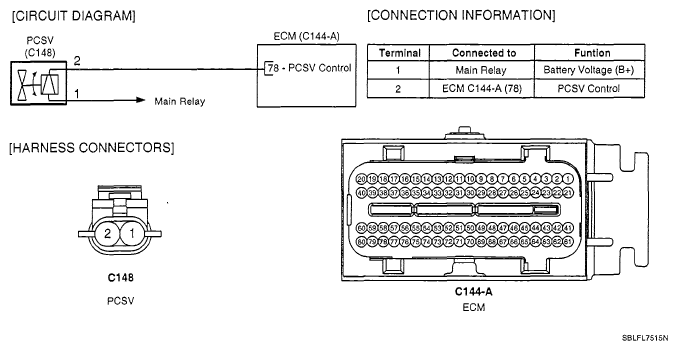

Home › Kia › 2007 › Sorento Base, A5SR1 › Repair and Diagnosis › Engine Performance › Engine Control Systems › Gasoline Engine Control System › Purge Control Solenoid Valve (PCSV) › Inspection › Schematic Diagram
