Back Warning System
›
Back Warning Control Module
›
Circuit Diagram
›
Notes
Circuit Diagram: Notes

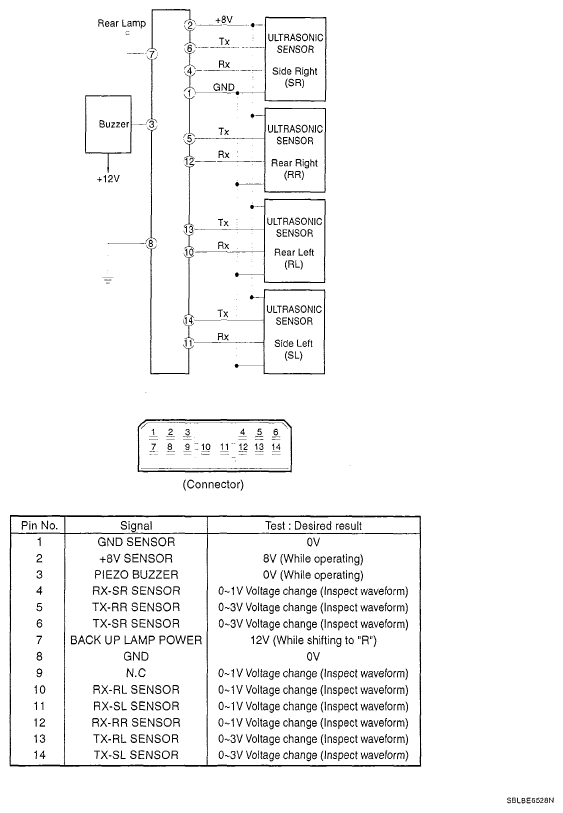

Fig 1: Body Electrical System Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
