Home › Kia › 2007 › Sorento Base, A5SR2 › Repair and Diagnosis › Brakes › Traction Control › ESC (Electronic Stability Control) › Esp/ESC System › Components

Esp/ESC System: Components

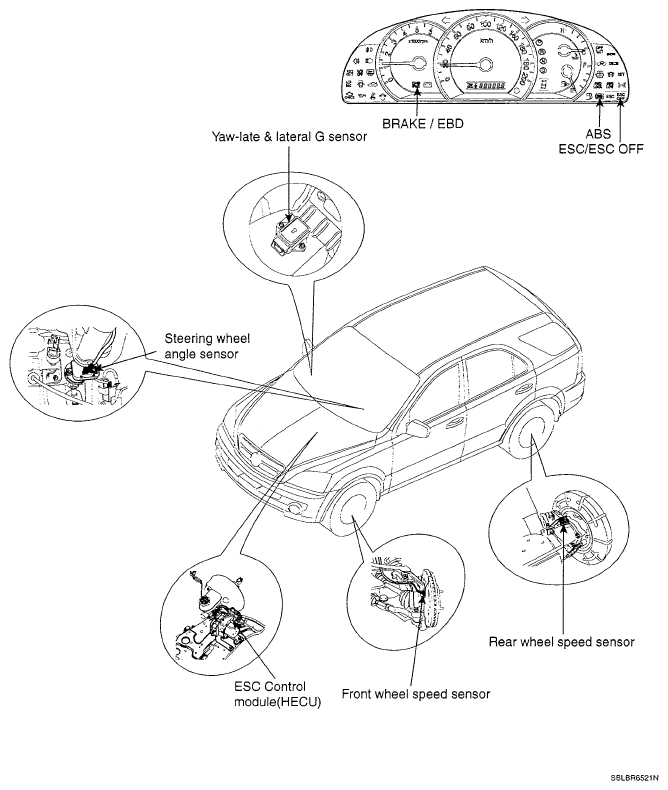

Fig 1: Identifying Brake System Components
G05119689Courtesy of KIA MOTORS AMERICA, INC.
