Chart 1
Chart 1

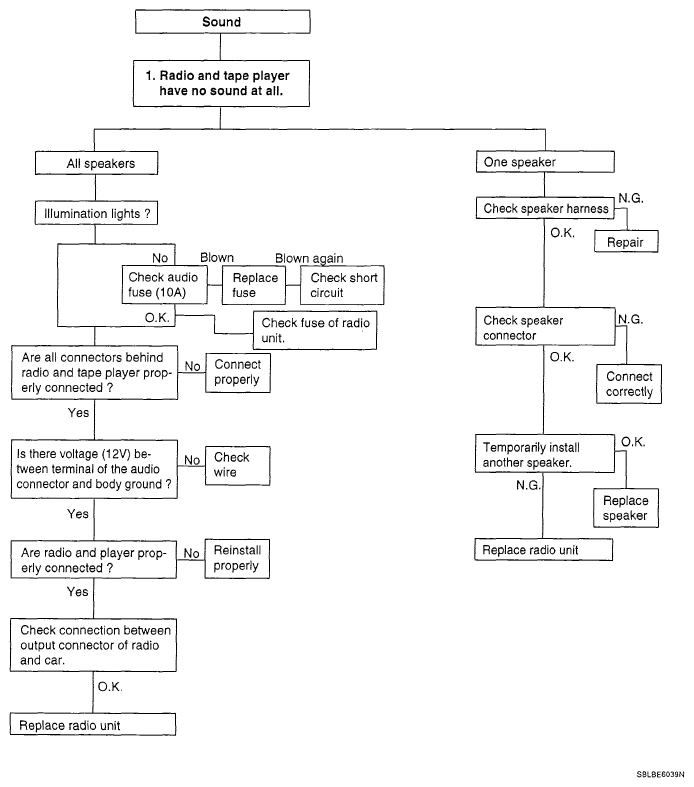

Fig 1: Troubleshooting Flow Chart 1
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Troubleshooting Flow Chart 1
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
