Chart 4

CD WILL NOT BE ACCEPTED

Fig 1: Troubleshooting Flow Chart For CD Will Not Be Accepted
Courtesy of KIA MOTORS AMERICA, INC.
NO SOUND

Fig 2: Troubleshooting Flow Chart For No Sound
Courtesy of KIA MOTORS AMERICA, INC.
CD SOUND SKIPS
1. Sound sometimes skips when parking.

  Fig 3: Troubleshooting Flow Chart For Sound Sometimes Skips When Parking
  Courtesy of KIA MOTORS AMERICA, INC.
2. Sound sometimes skips when driving.
  (Stop vehicle, and check it.)

  (Check by using a CD which is free of scratches, dirt or other damage.)

  Fig 4: Troubleshooting Flow Chart For Sound Sometimes Skips When Driving
  Courtesy of KIA MOTORS AMERICA, INC.
SOUND QUALITY IS POOR

Fig 5: Troubleshooting Flow Chart For Sound Quality Poor
Courtesy of KIA MOTORS AMERICA, INC.
CD WILL NOT EJECT

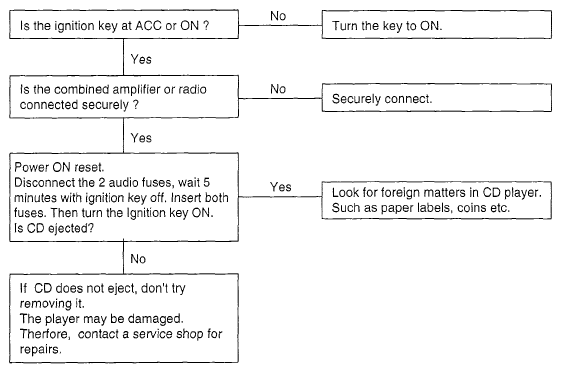

Fig 6: Troubleshooting Flow Chart For CD Will Not Eject
Courtesy of KIA MOTORS AMERICA, INC.
NO SOUND FROM ONE SPEAKER

Fig 7: Troubleshooting Flow Chart For No Sound From One Speaker
Courtesy of KIA MOTORS AMERICA, INC.
