Operation Principle: Removal

  1. Remove the rear bumper. Refer to the Rear bumper in the BODY (INTERIOR AND EXTERIOR) .
  2. Disconnect the sensor connector at the inside of the rear bumper (C), and then remove the sensor (B) from the housing (A).

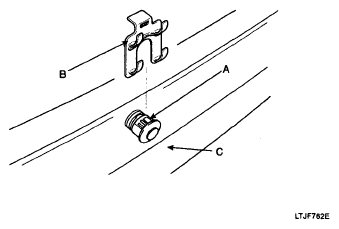

    Fig 1: Identifying Sensor And Housing
    G04885268Courtesy of KIA MOTORS AMERICA, INC.
